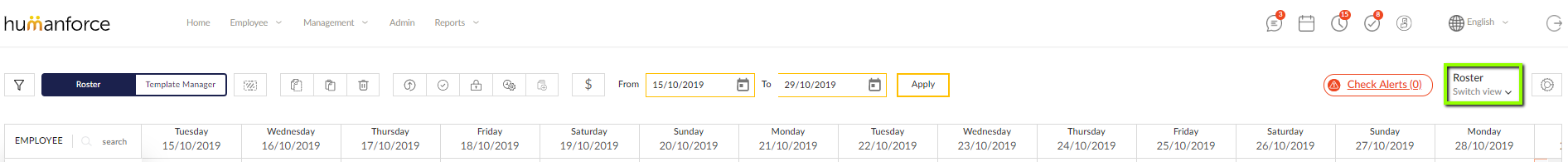

In Employee Rostering you have the ability to switch between Rostering and Gantt Chart views.
Note: The Gantt Chart is only available in Employee Rostering. If you do not have
access to this screen, talk to you administrator.

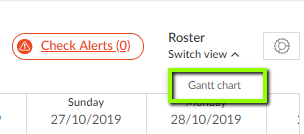

To switch between views, select switch view & select Gantt Chart.

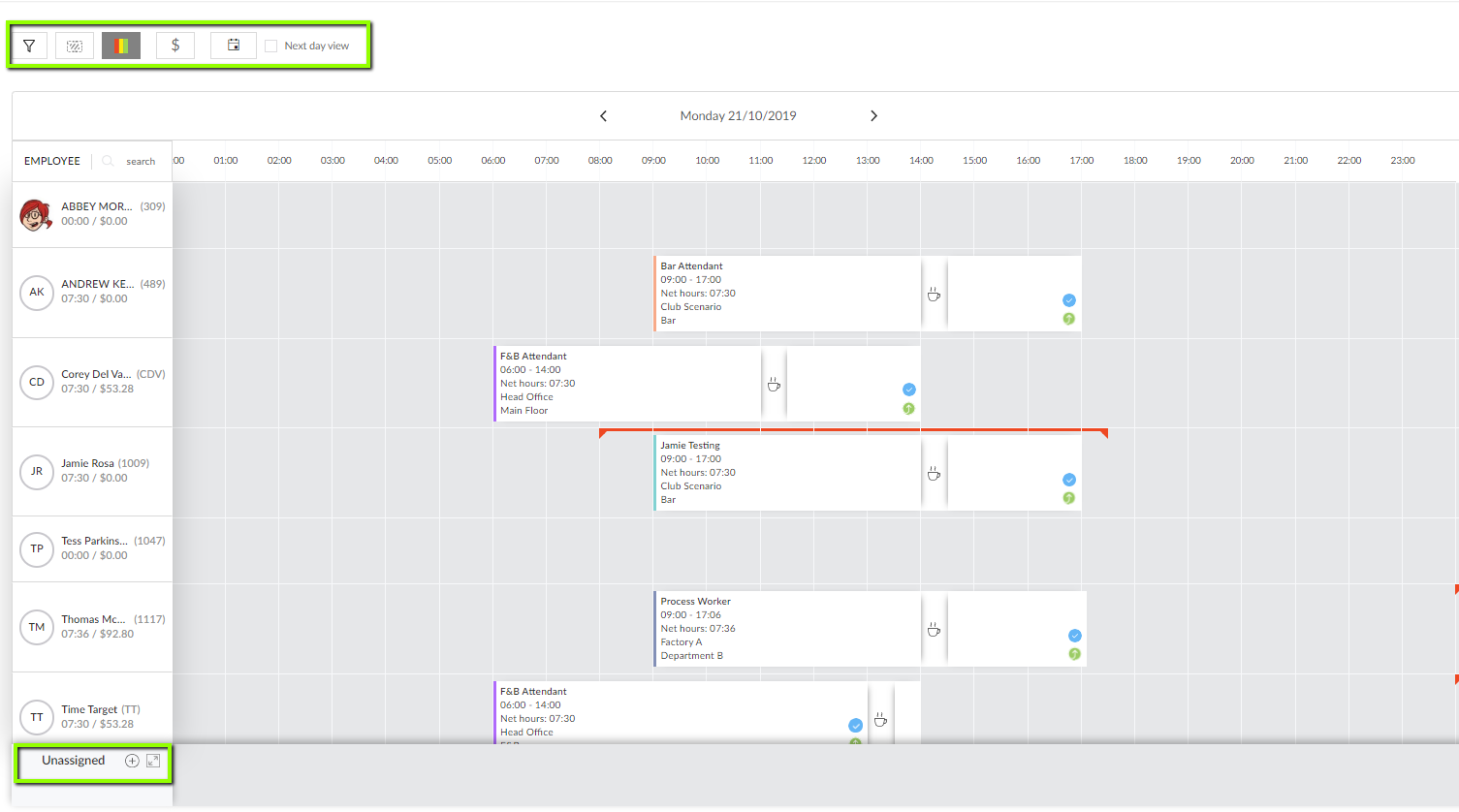

When in Gantt Chart view, you have the ability to apply similar filters as you would in Rostering screen & unassigned shifts are still shown below.

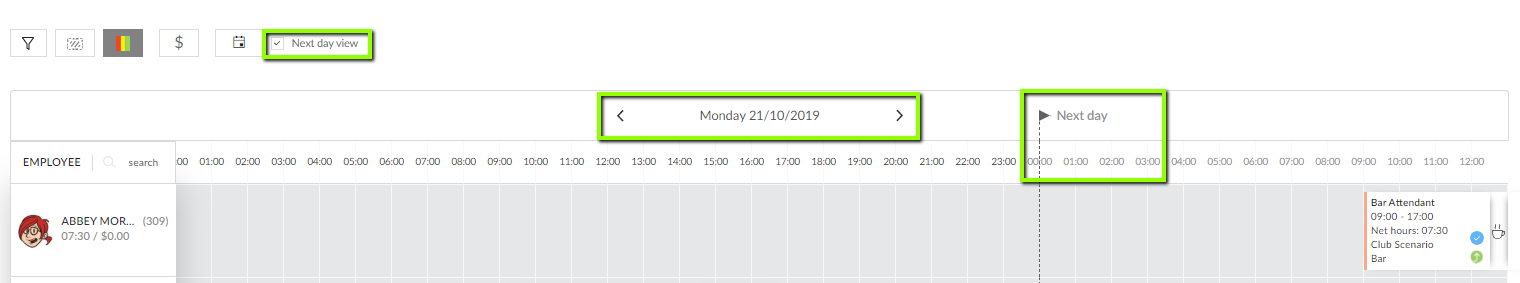

The view is only for one day, unless Next Day View is ticked. To move between days simply select the arrows on either side of the date.
Editing shifts in Gantt View

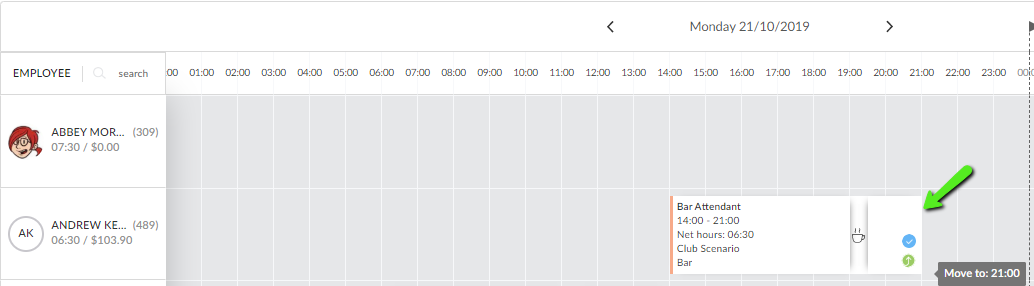

Shift Start and End times can be adjusted by moving curser to start or end of shift and dragging out (extend) or in (shorten) with adjust shift times.

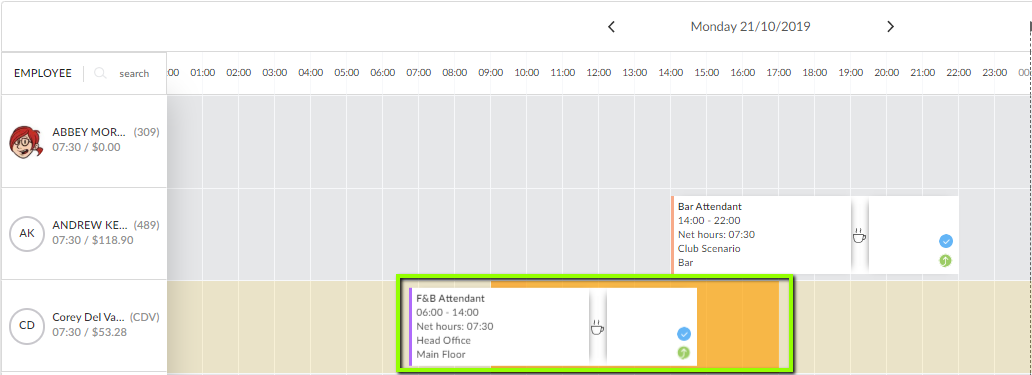

To maintain the shift length but move the start and finish time of shift completely, click and drag shift along times - orange cells will show new start and end times of shift.
Adjustments to shifts will save automatically. If shifts are unpublished - they will need to be published in the Employee Roster view.
